ekō commercial provides durable and affordable commercial solutions utilizing 10, 20 and 40 foot upcycled containers. Our designs can be customized to be provided on a sales or lease basis.

*All Models available on wheels, request a quote for more information

*Rental options available upon request

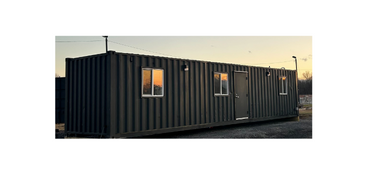

The Stetson
GHD Office (2) crop

Cost: $53,000

Square Footage: 320 square foot

Details:
1 Office Room,1 Half Bathroom, 1 Central Area

Exterior Dimensions:
40’ L x 8’ W x 8’ H

Request a quote
The Stetson Office Rendering Front View
The Stetson Office Rendering Top View
GHD Office 7-3
GHD Office 6-2
GHD Office 5-2
IMG_8621 (2)-2

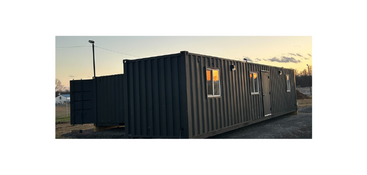

Office & Storage
GHD Office 2 (2) copy

Cost: $65,000

Square Footage: 480 square foot

Details:
1 Office Room,1 Half Bathroom, 1 Central Area, 1 20’x 8’ storage area

Exterior Dimensions:
40’ L x 8’ W x 8’ H
20’ L x 8’ W x 8’ H

Request a quote
Office and Storage Model ISO View
Office and Storage Model Top View
GHD Office 7-3
GHD Office 6-2
GHD Office 5-2
IMG_8621 (2)-2
Denihan
Untitled design (1)

Cost: $

Square Footage:

Details:


Exterior Dimensions:

Request a Quote
Industrial Office Rendering 20 ft
Denihan Office Interior Picture 1

Features and Specifications

Container Types Utilized:

  • 40’ X 8’ X 8’ ISO CONTAINER
  • 20’ X 8’ X 8’ ISO CONTAINER

Dimensions: (1) 40’ + (1) 20’ ISO CONTAINER

40’ UNIT
‍
EXTERIOR LENGTH: 40’
EXTERIOR HEIGHT: 9.6’
EXTERIOR WIDTH:  8’

INTERIOR LENGTH: 38.875’
INTERIOR HEIGHT: 7.875’
INTERIOR WIDTH: 7.16’



20’ STORAGE UNIT

EXTERIOR LENGTH: 20’
EXTERIOR HEIGHT: 8’
EXTERIOR WIDTH:  8’
INTERIOR LENGTH: 18.875’
INTERIOR HEIGHT: 7.875’
INTERIOR WIDTH: 7.16’

WEIGHT: ~20,000LBS (BOTH CONTAINER UNITS FINISHED)

Container - Specifications

Side walls
14-gauge vertically continuous corrugated steel panels.
Roof
14-gauge die-stamped steel sheets.
Cross Section
18x 8-gauge pressed channel section steel.
Corner Castings
Cast steel corner castings produced according to ISO 1161:1984. Castings can be used to lift and move the container during the setting period of the build. As well as locking the container into its foundation.
Cargo Doors
Original 11-gauge corten steel double outswing doors with 270° swing radius.
Rails
7-gauge tubular, cold-formed channel section steel.
Corner Posts
4-gauge single piece, pressed open section steel.
Subfloor
1” marine grade plywood
Foundation Lockdown
ISO container slab level lock type 4 welded to an 8” embedment plate with ¾” x 5” nelson studs.

Exterior and Interior

EXTERIOR: SHERWIN WILLIAMS: DTM METAL ACRYLIC BONDING PRIMER

DIRECT TO METAL WATER-BASED ACRYLIC BONDING PRIMER APPLIED TO THE EXTERIOR OF THE CONTAINER AS A PROTECTIVE COATING TO MAINTAIN LONG LIFE OF THE CONTAINER.

SHERWIN WILLIAMS: EXTERIOR GRADE MULTI-ACRYLIC PAINT – MULTIPLE COLORS AND FINISHES AVAILABLE.

INTERIOR: SHERWIN WILLIAMS: PRO MAR 200 ZERO VOC LATEX PAINT

COMPLIES WITH LEED, MPI, GREEN GUARD, ENVIRONMENTAL INSTITUTE (GEI) AND OTHER GREEN GUIDELINES AND REGULATIONS. ANTI-MICROBIAL AGENTS INHIBIT THE GROWTH OF MOLD AND MILDEW ON THE PAINT SURFACE.

EXTERIOR WINDOWS:

‍VINYL SINGLE HUNG WELD IN WINDOW: HIGH PERFORMANCE LOW-E + ARGON GAS FILLED INSULATED GLASS FOR HEIGHTENED THERMAL ENERGY EFFICIENCY WITH FOUR-POINT WELDED VINYL MAIN FRAME ATTACHED TO STEEL FRAMING.

‍EXTERIOR DOORS:

‍CLEAR LOW-E GLASS BRICK MOLD, DOUBLE PANEDOORS ATTACHED TO STEEL FRAMING.

‍INTERIOR DOORS:

‍36” X 80” BARN DOOR – 0.25” X 4’ X 8’POPLAR SANDED PLYWOOD TRIMMED WITH 1”X 4” PINE ATTACHED BY SLIDING TRACK HARDWARE KIT

36” X 80” 6 PANEL HOLLOW CORE MOLDED COMPOSITE SINGLE PRE-HUNG INTERIOR DOOR

INTERIOR FRAMING: 2”X4” WOOD FRAMED STUD WALLS THROUGHOUT UNIT.

‍INSULATION: ASTM C518 R VALUE

CEILING / FLOOR: R-22 CLOSED CELL FOAMINSULATION
2-COMPONENT POLY/ISO CLOSED-CELL POLYURETHANE SPRAY FOAM.

WALLS: R-15 FACED BATT INSULATION FIBERGLASS BATT INSULATION, GREEN GUARD GOLD CERTIFIED

‍WALL SYSTEMS:

FINISH LEVEL: LEVEL 4

‍DRYWALL TYPE 1: 0.5” FIRE RESISTANT GYPSUM BOARD; 0.5”.

‍DRYWALL TYPE 2: 0.5” WATER RESISTANT GYPSUM BOARD.

‍FLOORING: LAMINATE FLOORING - WATERPROOF FOR 24 HOURS; 10 MM TOTAL THICKNESS INCLUDING FOAM BACKER AND VAPOR BARRIER.



HALF - BATHROOM:
24” VANITY WITH STAINLESS STEEL BOWL SINGLE LEVER HANDLE LAVATORY FAUCET

ERGONOMIC TOILET 1.6 GPM
40CFM EXHAUST FAN, UL LISTED AND HVI-2100 CERTIFIED.

KITCHEN:
MINI-FRIDGE
LOW WATT MICROWAVE
DROP-IN 2 BURNER PROPANE COOKTOP

HVAC:
9,000 BTU MINI-SPLIT UNIT WITH AN ENERGY EFFICIENT 22 SEER RATING DUAL SPLIT, WALL MOUNTED, WITH REMOTE CONTROL AND WIFI CONTROL.

WATER HEATER:
PROPANE TANKLESS WATER HEATER

WATER PRESSURE RATING: 50 PSI (MAX 80 PSI)

‍WATER PIPING: HIGH-DENSITY CROSS-LINKED POLYETHYLENE (HDPE) PEX PIPING

‍WASTE PIPING: HIGHLY-DURABLE SCHEDULE-40 PVC PIPING

‍WASTE OPENINGS: 2 (STEMMED DOWN THROUGH FLOOR)

‍VENT OPENINGS: 3 (STEMMED DOWN THROUGH FLOOR)

‍WATER INTAKE PORT: 1 (STEMMED DOWN THROUGH FLOOR)

‍SHUT OFF-VALVES: AT ALL FIXTURES

PLUMBING TESTING:

‍WATER SUPPLY PRESSURE TEST - IPC 312.5

WATER TIGHTNESS TEST - IRC P2503.5.2

TESTING OF BACK FLOW PREVENTION ASSEMBLIES- IPC 312.9

DWV SYSTEM TEST - IPC 312.2 AND 312.3

WINDOW LEAK TEST - INTERNAL STANDARD 8.6.2

200 AMP LOAD SYSTEM: 20-SPACE, 40-CIRCUIT OUTDOOR MAIN BREAKER PLUG-ON NEUTRAL LOAD CENTER.

‍HARDWIRED SMOKE AND CARBON MONOXIDE DETECTORS: PHOTO ELECTRIC SMOKE SENSOR AND CARBON MONOXIDE DETECTORS. TAMPER-RESISTANT WITH 9V BACKUP BATTERY.

‍CEILING LIGHTS: 6" SLIM RECESSED LIGHTING WITH JUNCTION BOX

‍EXTERIOR LIGHTS: EXTERIOR LED WALL SCONCE LIGHT

‍EXTERIOR: DUPLEX RECEPTACLE: WEATHER RESISTANT OUTDOOR 20 AMP 125 VOLT SELF GROUNDING OUTLET

‍INTERIOR DUPLEX RECEPTACLE OUTLETS: 15 AMP, 125 VOLT TAMPER RESISTANT OUTLETS.

‍INTERIOR DUPLEX GFCI RECEPTACLE OUTLETS: 15 AMP, 125 VOLT TAMPER RESISTANT OUTLETS.

‍RANGE RECEPTACLE: WALL MOUNTED, 50 AMP, 125/250 VOLT, NEMA 14-50R.

REFRIGERATOR RECEPTACLE: WALL MOUNTED, 15 AMP, 125 VOLT.

‍TELEVISION/DATA JACKS: CATEGORY 5E JACK FOR ETHERNET, INTERNET, PHONE. UL LISTED 2.4 GHZ PLATED JACK FOR A/V COMPONENTS, FROM STANDARD TV TO SATELLITE TV.

ELECTRICAL TESTING:
‍DIELECTRIC TEST - NEC 550.17 A
CONTINUITY TEST NEC 550.17 B
POLARITY TEST NEC 550.17 B
ELECTRICAL OPERATIONAL TEST NEC 550.17 B
